Cameras

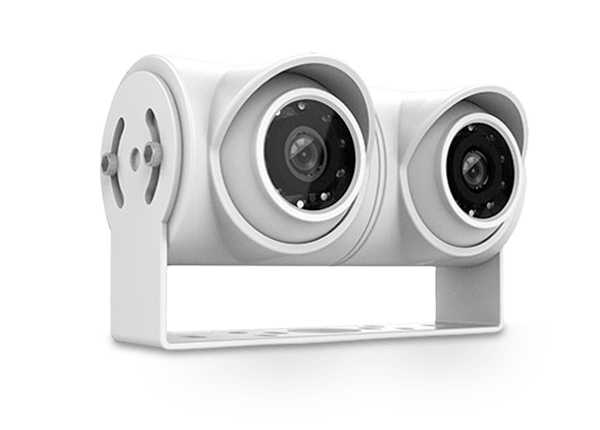

dualCam
Heavy Duty Dual Camera
Part No. CBC204W
Image Sensor 1/3 Inch Color CCD
Horizontal Resolution 720TV Lines
Effective Pixels NTSC: 976(H)×494(V) PAL: 976(H)x582(V)
Usable Illumination 0Lux ( Built in 10 IR LED’s for Picture Support in the Dark)
Free viewing angle 120°/ 135°
Video Output 1.0Vp-p75Ω
Power DC 12V (+/-10%)
Waterproof IP69K Rated
Shock Threshold 10G
Operating Temperature -40 to 158 F
Dimensions   75w x 43h x 38d mm

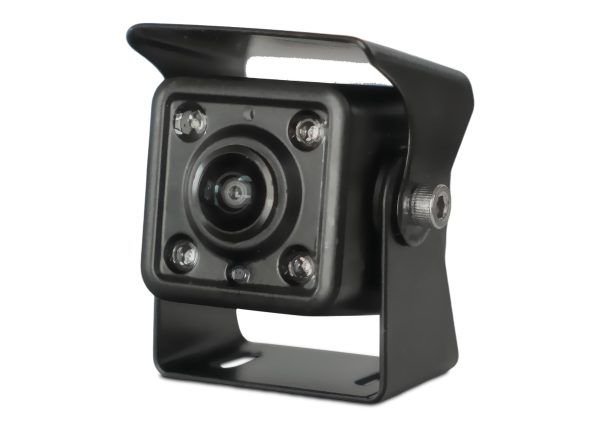

hvDutyCam
Heavy Duty Rear Camera
Product No. CBC103W
Image Sensor 1/3 inch Color CCD
Horizontal Resolution 700 TV Lines
Effective Pixels 510 x 492
Min Illumination 0 Lux / with IR
View Angle 180°
Color Full Color
Working Voltage DC 9-16 V
Waterproof IP69k
Shock  Rating 100G
Operating Temperature -30 to 70° C
Sound   Yes

blk round
Heavy Duty Side Camera
Image Sensor 1/3 Inch CMOS
Horizontal Resolution 700TVL(AHD720P)
Effective Pixels –
Usable Illumination 0.1Lux@(F1.2,AGC ON)
Free viewing angle 120°
Video Output 1Vp-p Composite Output(75Ω)
Power DC 9-36V (+/-10%)
Waterproof IP69K Rated
Shock Threshold 10G
Operating Temperature -30℃~70℃
Dimensions 82.6*60.5*56.5mm(L*W*H)

high_res_cam
Heavy Duty Side Camera

Hi-Res

Image Sensor 1/2.9″ CMOS
Scanning Progressive
Effective Pixels 1920(H) x 1080(V)
Gamma Consumption 00.45
Resolution 1080P
Video Output 1.0Vp-p75Ω
White Balance Auto
S/N Ratio Better than 52dB
Electronic Shutter 1/25 (1/30)～1/50,000 sec.
Operating Temperature -20° ~ 70° C
Frame Rate 25 fps / 30 fps

cam_cam
Universal Mount High Res
Product No. CKC804HD
Image device 1/2.9″ CMOS
Scanning Progressive
Effective Pixels 1920 (H)  x 1080 (V)
Min. Illumination 0.1 Lux
Dynamic Range 81dB
Main Stream res. 1/720P/960P/1080P
Power DC 12V (+/-10%)
Audio G.711A/G.711U
IP Rating IP69K
Operating Temp. -20 to 70° C
Lens Angle 190°/170°/150°

flush2
Flush Mount Camera

Product No. CBC030

Image Sensor 1/3 Inch Color CCD
Horizontal Resolution 700 TV Lines
Effective Pixels 648 x 488
Illumination 1.0 Lux
Lens Angle 150°
Video Output 1.0Vp-p75Ω
Working Voltage 9-16V DC
Waterproof IP69K Rated
Shock Threshold 10G
Connector 4 Pin
TV System NTSC

plate cam
License Bar Camera
Product No. CAC002
Image device CMD III M”
Format NTSC
Effective Pixels 648 x 448
Parking Guard Line Switchable On/Off
Resolution 420 TV lines
Min Illumination 0.5 Lux
Power DC 12V (+/-10%)
Working Voltage 9-16V DC
IP Rating IP67-IP68
Operating Temperature -30 to 70° C
Lens Angle   170°

dome
Heavy Duty Dome Camera
Image Sensor CMD-III High Performance
Horizontal Resolution 420 TV Lines
Effective Pixels 648-488
Min Illumination 0Lux with IR
View Angle 135°
Color Full Color
Working Voltage DC 9-16 V
Waterproof IP67-IP68
TV System NTSC
Operating Temperature -30 to 70° C
Dimensions   –
