Reversing Aid Sensors
MAX 1
Heavy Duty Sensor
Product No. SP70
max1_main-700x421-1

The MAX 1 is a heavy duty vehicle reversing system specifically designed for commercial vehicles. It is equipped with stainless steel sensors and a heavy duty weatherproof control box which can withstand harsh weather conditions.

When reverse is engaged the system alerts with a beeping sound along with voice dictation, indicating the foot distance of obstacles or obstructions. Rear installed sensors utilize SONAR technology via ultrasonic sound propagation to detect objects and calculate distance.

SENSOR:
Type: 4x S.O.N.A.R. Commercial Grade, Stainless Steel, Weatherproof
Dims: 42 mm x 15?
Frequency: 36.5 kHz
Dispersion: H 30°, V 50°
Range: min: 12 in – max 12 ft
SPEAKER:
Type: Magnetic \ Voice Coil
Dims: 4.49Ø IN x 1.8 IN
Max Vol. 100 dB @ 10 cm
Processor Unit:
Input Power: 12-28 V DC
Power Consumption: 3.0 W
Operating Temp. -22° F – 140° F

MED 1
Medium Duty Sensor
Product No. SP80
MED1_web_res_b

The MED1 is a Medium duty vehicle reversing system. Sensors are weatherproof and encased within a metal bezel  covering for added strength as well as installation ease.

When reverse is engaged the system alerts with a beeping sound along with voice dictation, indicating the foot distance of obstacles or obstructions. Rear installed sensors utilize SONAR technology via ultrasonic sound propagation to detect objects and calculate distance.

SENSOR:
Type: 4x S.O.N.A.R.  Flush Mount, Metal Bezel
Dims: .82 x .51 in?
Frequency: 32 kHz
Dispersion: H 30°, V 50°
Range: min: 12 in – max 12 ft
SPEAKER:
Type: Magnetic \ Voice Coil
Dims: 4.49Ø IN x 1.8 IN
Max Vol. 100 dB @ 10 cm
Processor Unit:
Input Power: 12-28 V DC
Power Consumption: 3.0 W
Operating Temp. -22° F – 140° F

Realtime Audio Voices the Distance of Feet and Inches to Obstacle Distance.

See and hear the system.

Collision Avoidance

Protect Your Fleet With Mobileye.
meKey
mobileye.z_logo-01

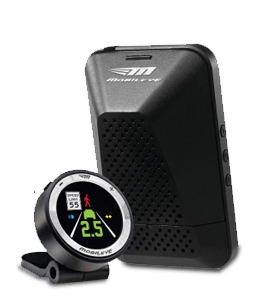

Product No. ME630

Introducing the newest real-time collision avoidance system from Mobileye. The Mobileye 630 system uses an artificial vision sensor to constantly monitor the road for pedestrians, cyclists, and other vehicles.

The system serves as an extra set of eyes on the road to alert a driver if a collision is imminent. Not only do these warnings help drivers avoid dangerous situations they may face on the road, it also helps them to improve their driving behaviors.

Around 90% of all accidents are caused by human error, many resulting from driver fatigue or distraction. This is where Mobileye technology comes in – it never gets distracted or tired.

Mobileye 6 is an Advanced Driver Assistance System (ADAS) consisting of a single forward-facing vision sensor that constantly scans the road ahead, distinguishing and monitoring other vehicles, motorbikes, bicycles, pedestrians, lane lines and road edges.

Employing cutting-edge artificial vision technology, Mobileye uses intelligent algorithms to interpret a road scene and provide real-time feedback to the driver. And, in potentially critical situations, delivers immediate alerts – giving the driver more time to react and avoid the collision or, at least, reduce the severity.

mobile-eye

Mobile Digital Video

Audio / Video • Telemetric Data • Tracking
KP2

Modular Dual Camera Solution

KP2_b

Road-facing video and safety alerts. A snap-on driver-facing camera option with AI-powered distracted driver and fatigue detection. Tracking plus video. Plug-and-play installation. One device, fully modular, just the way you want. The new KP2. Add flexibility. Lose complexity.

Update as technology or needs advance
KP2’s road-facing dashcam records potential events and stores them in the cloud for fast after-the-fact review. Cloud-based technology keeps the device simple, affordable and future-proof, easy to update as technology advances. Equally important, it eliminates the time-wasting frustration of false positives so common in more expensive road-facing systems that tout real-time alerts.

Optional, snap-on forward-facing camera
With a clever snap-on design, the driver-facing camera can be added to the KP2 quickly and easily at the time of purchase, later, or never. This AI-enabled road-facing dashcam offers cost-effective edge computing with a flexible array of Advanced Driver Assist System (ADAS) and the SmartWitness Driver State Monitoring (DSM) system for driver safety and support.

ADAS and DSM foster safer driving with natural voice notifications
Choose the alert options that are most important to the user, whether all ADAS, all DSM or a combination of both. Both ADAS and DSM real-time alert notifications are available in a natural voice versus buzzing and beeping which can distract, confuse and annoy drivers.

Available ADAS features exemplify the signature SmartWitness “critical few functionality” approach, focusing on what’s most valuable to minimize cost. Options include real-time tailgating, forward collision and pedestrian presence alerts.

KP2’s DSM features include a critical-few selection of driver fatigue, distracted driver, driver phone use, seatbelt use/improper seatbelt use and driver smoking alerts.

Easy to install, use and swap out
The modular windshield-mounted design offers plug-and-play ease — so easy to install that end users can do it; easy to operate with a minimum of training required; easy to swap out for servicing. Users will appreciate the time this saves, giving them more time on the road.

Cp4

Four Channel Video MDVR

cp4S

This four-channel connected vehicle DVR operates with ultrafast 4G/LTE, uploading data 10x faster than 3G devices. With instant notification of safety-critical events and real-time location and behavior tracking, commercial vehicle owners can respond quickly when issues arise.

The CP4S supports up to four SmartWitness HD (720p) cameras for crystal-clear video on all channels. Add an in-cab monitor to increase driver visibility and safety. With a nearly 360-degree view, the video tells the complete story of any incidents, quickly resolving insurance claims and exonerating drivers.

A compact, commercial-grade design makes the CP4S a fit in virtually any vehicle. Next-generation data security, automatic system health checks and protection from power disruptions keep data secure and available on demand 24/7. A Wi-Fi-only version (CP4S-W) is also available, which is perfect for existing network environments.

The CP4S is certified on Verizon, AT&T and UScellular networks

The CP4S is a powerful, compact and discreet product that provides the ability to have up to 4 HD cameras, giving fleet managers and drivers nearly 360-degree vehicle visibility awareness. The CP4S records second-by-second data on the onboard SD card and, if an incident occurs, gathers the 10 seconds before and after the incident and sends it to the cloud for immediate viewing. This saves time and focuses the customer’s attention on what needs to be seen, as opposed to sifting through hours of footage of drivers doing exactly what they should be doing.

While the law presumes innocence, commercial drivers are often assumed guilty on the scene. The incident video serves as valuable evidence, revealing the truth of what happened and protecting drivers from many of the issues faced on the roads today: insurance fraud, staged accidents, false/exaggerated whiplash claims, conflicting reports of actual events, driving offense allegations (speeding, traffic signal violations, swerving, distracted driving, etc.).

CRX

Eight Channel Video MDVR

F4b

The SmartWitness CRX mobile DVR offers high-definition (HD) in-vehicle CCTV recording for up to eight cameras.

The CRX provides fleet operators with an effective way to monitor and manage their remote assets in the field. In the event of an incident or allegation, the CRX HD eight-channel mobile DVR will aid in the investigation process and reduce potential cost and exposure. In-vehicle CCTV delivers actual video footage in the event of a claim, encourages safer, more fuel-efficient driving, monitors driving behaviors and enhances the overall safety and security for the driver, fleet operator and other road users.



The CRX includes a built-in three-axis G-sensor, GPS, eight alarm input triggers, flexible and powerful storage using an SSD (up to 1TB) and SD card backup storage (up to 128GB). The mobile DVR device itself is slim and compact, only 7″ x 7″ x 2″, and is connected directly to the vehicle’s battery power and ignition for fully automated operation. Connect an optional dashboard-mounted LCD display to provide the driver with a real-time 360-degree view of the interior and exterior of the vehicle.

Video Telematics
fleet safety view_section_image2

Fleet Safety View fleet video tracking software helps deliver driver safety and protection information within seconds of an incident taking place. That may be a road collision, an unsafe speeding event or when someone wants to know you’re looking out for them. GPS vehicle position data is sent from a SmartWitness connected video camera to the portal, so you can accurately track a vehicle and replay its route via the simple-to-use web application.

Industry statistics show that the faster any claim can be picked up and managed by your insurer (whether your fault or not), the cheaper the claim is to resolve. The lower the claim cost, the less impact it has on your insurance renewal/loss ratio. Fleet Safety View combines fleet video tracking with GPS tracking in one convenient application, allowing fleets to reduce and consolidate their recurring technology costs.

  • Video evidence to exonerate you and your driver from false claims
  • Built-in microphone, G-sensor and GPS to provide crucial evidence during incident analysis
  • Live vehicle location tracking
  • Vehicle trip history reports
  • On-demand live streaming video
  • Audible alarm option to encourage safe driving behaviors in real time to the driverSmartAnalysis software to review, back up, report and share incident video/data
  • Potential insurance premium protection/reduction
  • Theft/crime deterrent
  • Increased speed of claim resolution
  • Proven reduction of incident frequency and disputed claims

Video Monitors

monintor sans shade

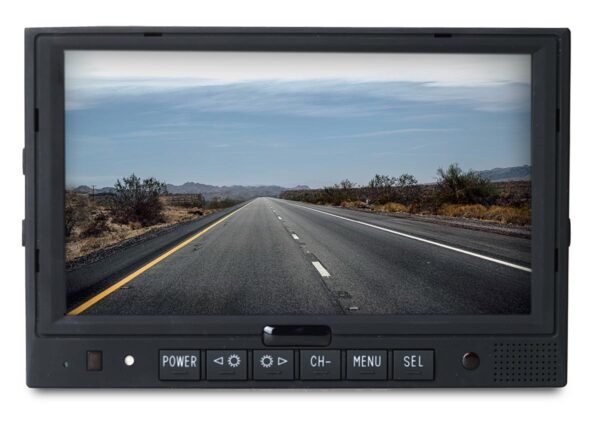

7 ” Hi-RES Monitor
Product No. CKM0703HD
Panel LCD 24 bit
Screen Size 7 in
Resolution 1024 x 600
Signal System PAL/AUTO/NTSC
Brightness 600cd/m²
Contrast 700:1
Video Input AV 3 Channel

MONI shade sans shade. 4 screens
7 ” Quad View Monitor

part no. CBM7040

Panel TFT LCD Digital
Screen Size 7 in
Resolution 800×480
Signal System PAL/AUTO/NTSC
Brightness 500cd/m²
Aspect Ratio 16:9
Video Input (4-Way) AV1-4 Camera

5inch moni
5 ” LCD Monitor
3 Channel
Panel TFT LCD Digital
Screen Size 5 in
Resolution 800×480
Signal System PAL/AUTO/NTSC
Brightness 350cd/m²
Aspect Ratio 16:9
Audio/Video 3 audio  3 video

moni_shade_san_shade
7 ” LCD Monitor
2 Channel part no. CBM7020
Panel TFT LCD Digital
Screen Size 7 in
Resolution 800×480
Signal System PAL/AUTO/NTSC
Brightness 500cd/m²
Aspect Ratio 16:9
Video Input 2

rear-view-monitor
5 ” Rearview Mirror Monitor

2 Channel

Panel TFT LCD Digital
Screen Size 5 in
Resolution 800×480
Signal System PAL/AUTO/NTSC
Brightness 500cd/m2
Aspect Ratio 16:9
Video Input (2-Way) AV1-DVD, etc. AV2-Camera

rearview_mon_lrg_screen

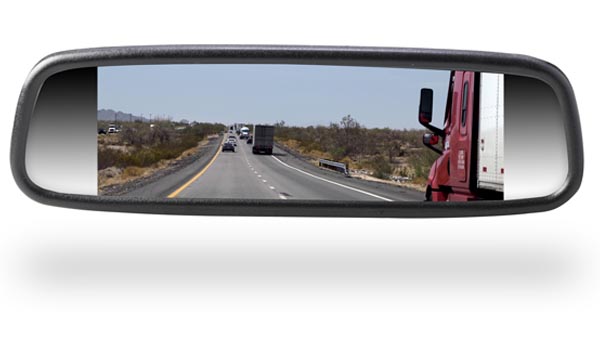

7 ” Rearview Mirror Monitor

3 Channel High Definition

Panel TFT LCD Digital
Screen Size 7.36 in
Resolution 1280 x 480
Signal System PAL/AUTO/NTSC
Brightness 500cd/m²
Aspect Ratio 23 : 7
AV Input 3

Cameras

dualCam
Heavy Duty Dual Camera
Part No. CBC204W
Image Sensor 1/3 Inch Color CCD
Horizontal Resolution 720TV Lines
Effective Pixels NTSC: 976(H)×494(V) PAL: 976(H)x582(V)
Usable Illumination 0Lux ( Built in 10 IR LED’s for Picture Support in the Dark)
Free viewing angle 120°/ 135°
Video Output 1.0Vp-p75Ω
Power DC 12V (+/-10%)
Waterproof IP69K Rated
Shock Threshold 10G
Operating Temperature -40 to 158 F
Dimensions   75w x 43h x 38d mm

hvDutyCam
Heavy Duty Rear Camera
Product No. CBC103W
Image Sensor 1/3 inch Color CCD
Horizontal Resolution 700 TV Lines
Effective Pixels 510 x 492
Min Illumination 0 Lux / with IR
View Angle 180°
Color Full Color
Working Voltage DC 9-16 V
Waterproof IP69k
Shock  Rating 100G
Operating Temperature -30 to 70° C
Sound   Yes

blk round
Heavy Duty Side Camera
Image Sensor 1/3 Inch CMOS
Horizontal Resolution 700TVL(AHD720P)
Effective Pixels
Usable Illumination 0.1Lux@(F1.2,AGC ON)
Free viewing angle 120°
Video Output 1Vp-p Composite Output(75Ω)
Power DC 9-36V (+/-10%)
Waterproof IP69K Rated
Shock Threshold 10G
Operating Temperature -30℃~70℃
Dimensions 82.6*60.5*56.5mm(L*W*H)

high_res_cam

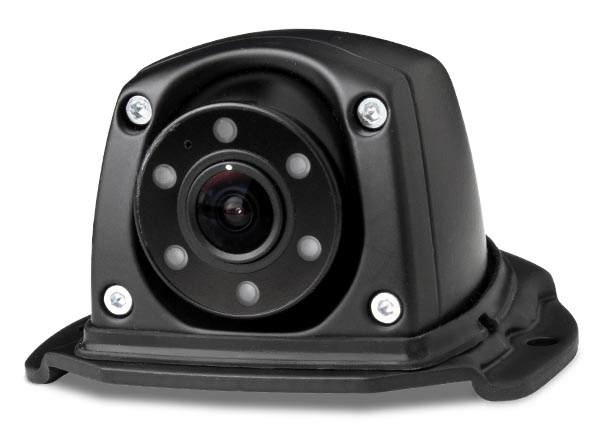

Heavy Duty Side Camera

Hi-Res

Image Sensor 1/2.9″ CMOS
Scanning Progressive
Effective Pixels 1920(H) x 1080(V)
Gamma Consumption 00.45
Resolution 1080P
Video Output 1.0Vp-p75Ω
White Balance Auto
S/N Ratio Better than 52dB
Electronic Shutter 1/25 (1/30)~1/50,000 sec.
Operating Temperature -20° ~ 70° C
Frame Rate 25 fps / 30 fps

cam_cam
Universal Mount High Res
Product No. CKC804HD
Image device 1/2.9″ CMOS
Scanning Progressive
Effective Pixels 1920 (H)  x 1080 (V)
Min. Illumination 0.1 Lux
Dynamic Range 81dB
Main Stream res. 1/720P/960P/1080P
Power DC 12V (+/-10%)
Audio G.711A/G.711U
IP Rating IP69K
Operating Temp. -20 to 70° C
Lens Angle 190°/170°/150°

flush2
Flush Mount Camera

Product No. CBC030

Image Sensor 1/3 Inch Color CCD
Horizontal Resolution 700 TV Lines
Effective Pixels 648 x 488
Illumination 1.0 Lux
Lens Angle 150°
Video Output 1.0Vp-p75Ω
Working Voltage 9-16V DC
Waterproof IP69K Rated
Shock Threshold 10G
Connector 4 Pin
TV System NTSC

plate cam
License Bar Camera
Product No. CAC002
Image device CMD III M”
Format NTSC
Effective Pixels 648 x 448
Parking Guard Line Switchable On/Off
Resolution 420 TV lines
Min Illumination 0.5 Lux
Power DC 12V (+/-10%)
Working Voltage 9-16V DC
IP Rating IP67-IP68
Operating Temperature -30 to 70° C
Lens Angle   170°

dome
Heavy Duty Dome Camera
Image Sensor CMD-III High Performance
Horizontal Resolution 420 TV Lines
Effective Pixels 648-488
Min Illumination 0Lux with IR
View Angle 135°
Color Full Color
Working Voltage DC 9-16 V
Waterproof IP67-IP68
TV System NTSC
Operating Temperature -30 to 70° C
Dimensions   –

For any questions or product inquiry, use the form below. A representative will contact you shortly. Or call toll free 888-881-6566.
